HS Series Manual Stacker

ລາຍລະອຽດ

The HS series Manual Stacker offers an excellent balance of performance, durability, and value. Engineered for reliability, it features a robust steel construction with reinforced forks, ensuring it can withstand demanding daily use.

Operation is made easy and efficient with a dual-lifting mechanism, including a foot pedal that considerably reduces operator effort. With various models offering capacities from 500kg to 1500kg and an optional adjustable fork, this stacker provides the versatility to handle different load sizes. It is the ideal, cost-effective choice for material handling tasks in workshops, warehouses, and retail environments.

Details

HS Series is not only an excellent compromise between price and performance but also a very resistant machine.
Reinforced forks, steel pulley and forks precisely driven by rollers, are some of the main features of this stacker.
The machine is also equipped with a foot pedal to lift forks, which considerably reduces the operator's effort.
Option: Adjustable fork (320-870mm)

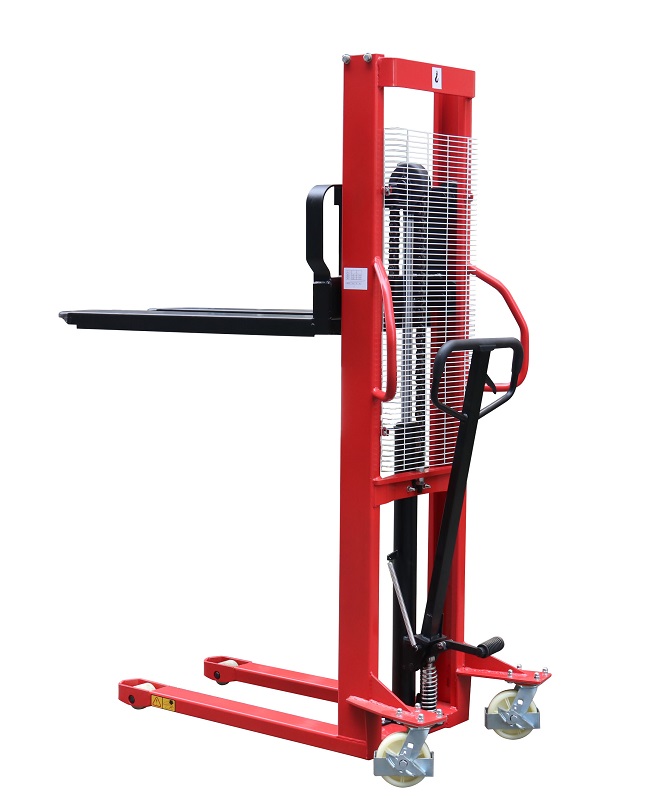

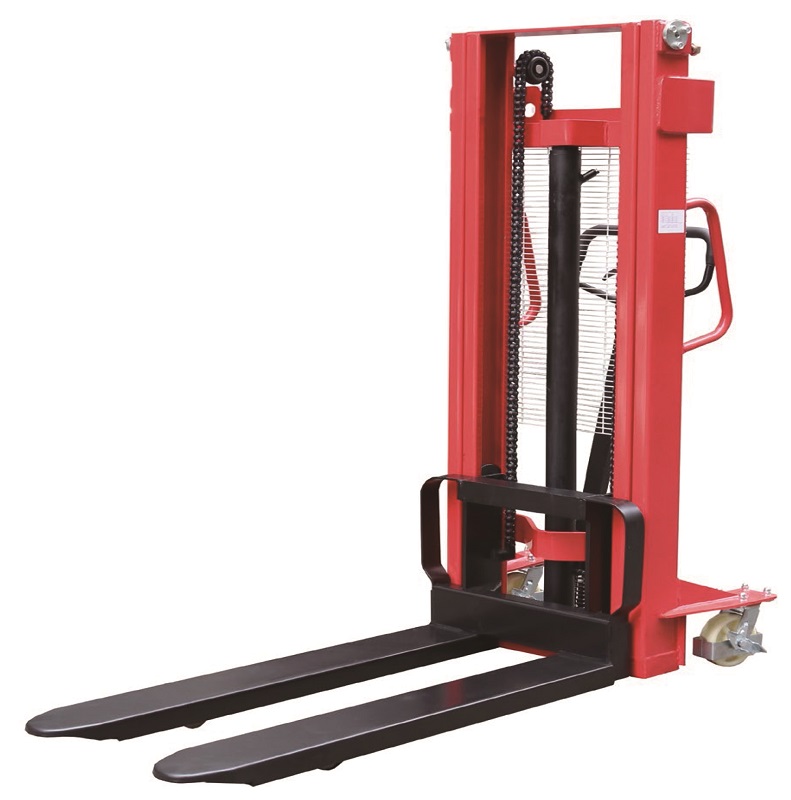

HS1525 HS1016

ຂໍ້ມູນຈໍາເພາະ

i-lift ສະບັບເລກທີ		1551801	1551802	1551803	1551804	1551805	1551806	1551807	1551808
ຕົວແບບ		HS0510	HS0516	HS1016	HS1018	HS1025	HS1030	HS1516	HS1525
ຄວາມສາມາດ	kg (lb.)	500(1100)		1000(2200)				1500(3300)
ສູນໂຫຼດ	mm (ໃນ.)	600(23.6)		600(23.6)				600(23.6)
Max. Fork Height	mm (ໃນ.)	1000(40)	1600(63)	1600(63)	1800(70.9)	2500(98.4)	3000(118.1)	1600(63)	2500(98.4)
Min. Fork Height	mm (ໃນ.)	90(3.5)		90(3.5)				90(3.5)
ຄວາມຍາວຂອງສ້ອມ	mm (ໃນ.)	1150(45.3)		1150(45.3)				1150(45.3)
ຄວາມກວ້າງຂອງສ້ອມ	mm (ໃນ.)	100x48(4x1.9)		160x55(6.3x2.2)				160x55(6.3x2.2)
Mast Width	mm (ໃນ.)	430(17)		480(19)		600(23.6)		490(19.3)	600(23.6)
Overall Fork width	mm (ໃນ.)	560(22)		560(22)				560(22)
Min.Turing Radius	mm (ໃນ.)	1540(60.6)		1590(62.6)				1590(62.6)
ພວງມາໄລ	mm (ໃນ.)	150x50(3x2)		150x50(3x2)				150x50(3x2)
Front Load Roller	mm (ໃນ.)	80x36(3.1x1.4)		80x60(3.1x2.4)				80x60(3.1x2.4)
Overall size LxWxH	mm (ໃນ.)	1655x640x1380	1655x640x1970	1660x700x2005	1660x790x2210	1680x780x1760	1670x780x2020	1670x700x2085	1690x870x1760
		(65.2x25.2x54.3)	(65.2x25.2x77.6)	(65.4x27.6x79)	(65.4x31.1x87)	(66.1x30.7x69.3)	(65.7x30.7x79.5)	(65.7x27.6x82)	(66.5x34.3x69.3)
ນໍ້າຫນັກສຸດທິ	ກິໂລ (Ib.)	126(277.2)	140(308)	173(380.6)	182(400.4)	259(569.8)	278(611.6)	182(400.4)	288(633.6)

We have this item in stock in France/US, if you are located in Europe or US, we can arrange delivery to you ASAP! This way will save your time and shipping cost.
